Deploying a .NET desktop application using MSIX

MSIX is a Windows app package format that provides a modern packaging experience to all Windows apps. The MSIX package format preserves the functionality of existing app packages and/or install files in addition to enabling new, modern packaging and deployment features to Win32, WPF, and Windows Forms apps. MSIX provides useful features such as auto-updates, file associations, clean uninstall, manageability (GPO / PowerShell), etc.

MSIX can be published on the Windows Store or any website using sideloading. In Windows 10 version 20H1, sideloading is enabled by default which makes this way of deployment easier for enterprise applications. In this post, I'll use sideloading deployment by publishing the installation files on a static website using GitHub Pages.

#Configuring Visual Studio

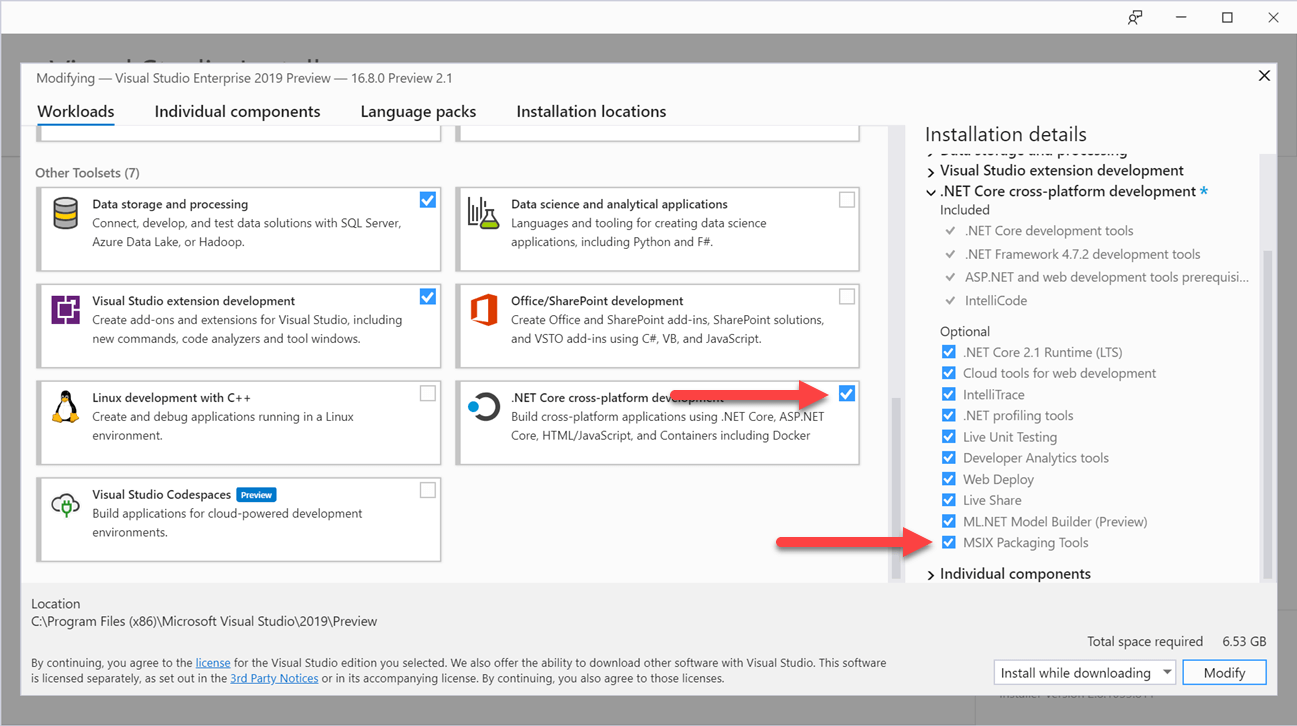

First, you need to install the MSIX Packaging Tools component.

Optionally, you can add the .vsconfig at the root of your project, so Visual Studio will suggest installing this component automatically on solution opening:

{
  "version": "1.0",
  "components": [
    "Microsoft.VisualStudio.ComponentGroup.MSIX.Packaging"
  ]
}

#Solution structure

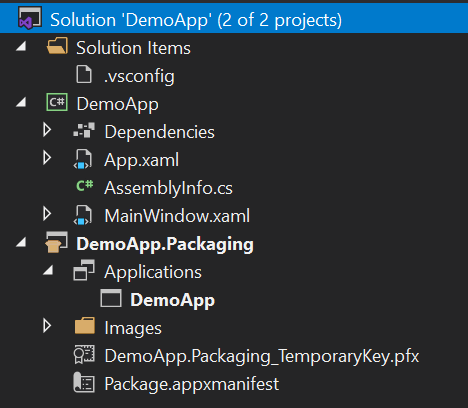

The solution contains 2 projects:

• A WPF application (.NET Core)
• A Windows Application Packaging Project

The packaging project references the WPF application.

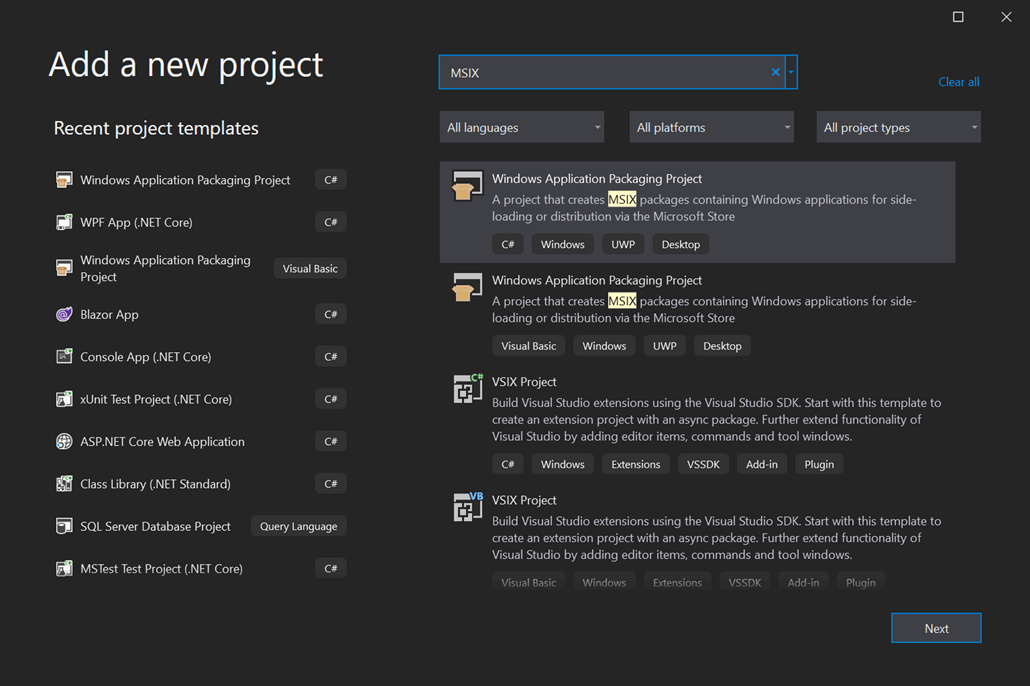

The packaging project is available in Visual Studio once you have installed the optional component:

You can now set the installer project as the startup project and start debugging. It should start the WPF application inside the MSIX container. This way you can debug your application in the same context as when you'll deploy it!

#Creating the MSIX package

1. Edit the csproj to target x86 or x64:

   csproj (MSBuild project file)copy

   <Project Sdk="Microsoft.NET.Sdk">
   <PropertyGroup>
       <OutputType>WinExe</OutputType>
       <TargetFramework>net5.0</TargetFramework>
       <UseWPF>true</UseWPF>
       <RuntimeIdentifiers>win-x86;win-x64</RuntimeIdentifiers>
   </PropertyGroup>
   </Project>

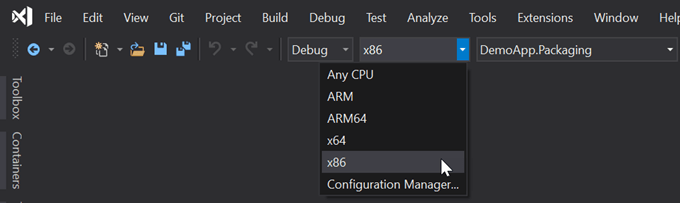

2. Now make sure you target x86 or x64:

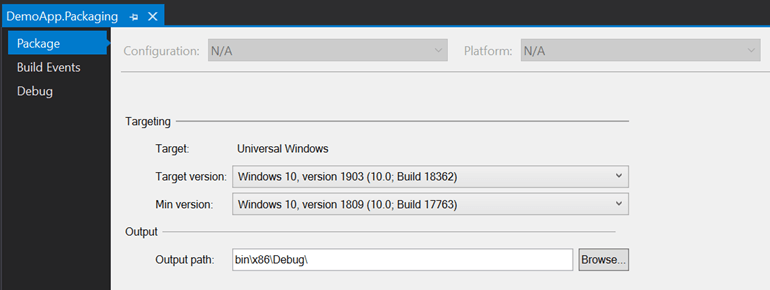

3. Edit the packaging project properties to set the minimal Windows version supported

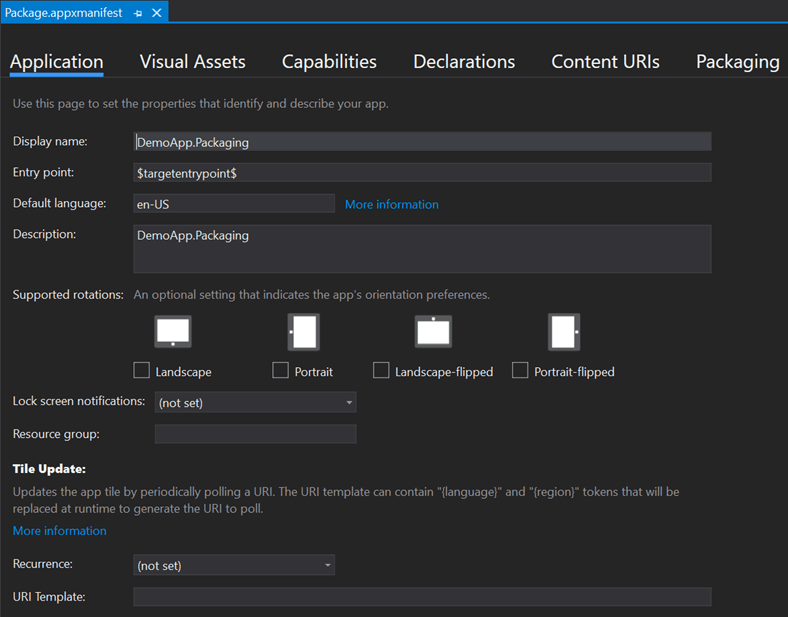

4. Edit the manifest file (Package.appxmanifest) with the project information: display name, logo, publisher, file associations, etc.

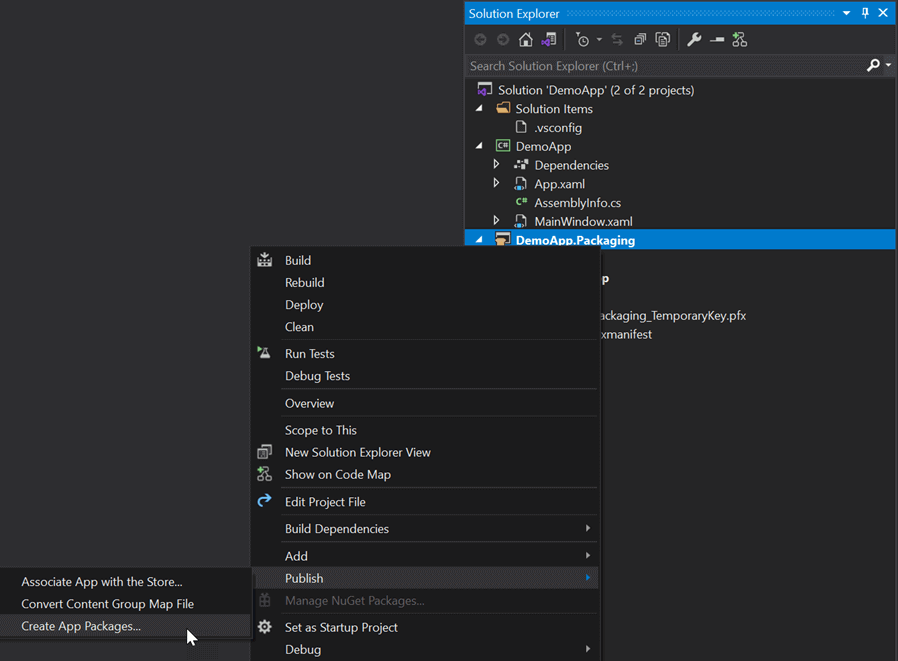

5. Start the deployment wizard



6. Select Sideloading mode

7. Select an existing certificate or create a new one

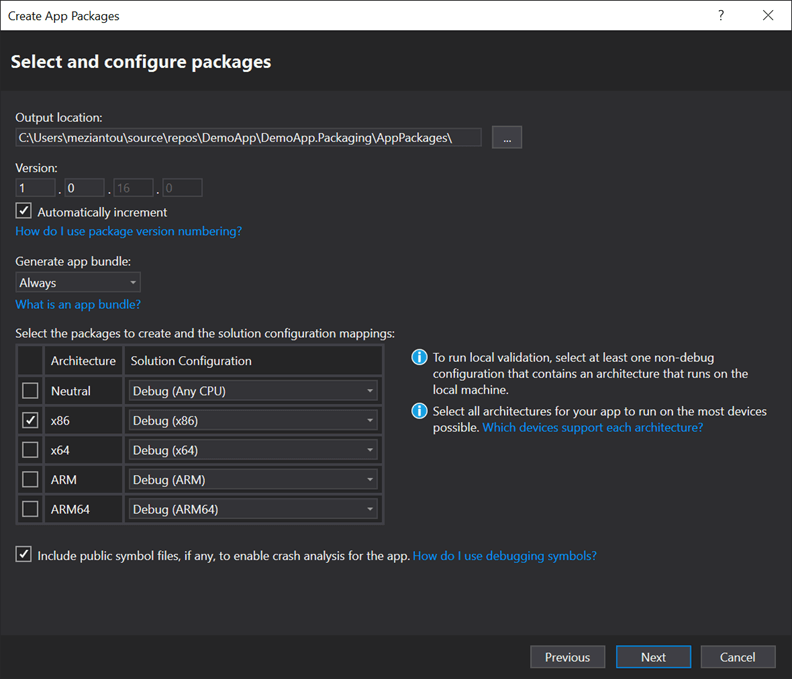

8. Select the expected targets



9. Set the auto-update URL. It is the URL where the generated files will be available. In my case, I use https://meziantou.github.io/msix-demo/. You can use an HTTP server or a shared folder (UNC).

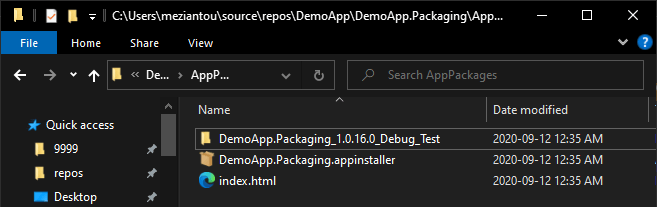

Visual Studio will compile the project, so you can get the generated files into the AppPackages directory:

The configuration is saved into the project (.wapproj) and manifest (Package.appxmanifest) files. So, if you want to build the package using the command line, it will reuse the configuration.

The App Installer file contains more properties to configure the update behavior of the app. While you cannot set all of them using the packaging project, you can edit the file after building the project.

#Deploying the packages to GitHub pages

There are many ways to deploy the package. The documentation provides many examples such as Azure Web Apps, AWS web service, IIS, Microsoft Intune, GPO, etc. You can also deploy the app to a shared folder (UNC).

In this section, I'll host the files on GitHub Pages because it is free and very easy to setup.

1. Create a new repository

2. Push the file at the root of the repository

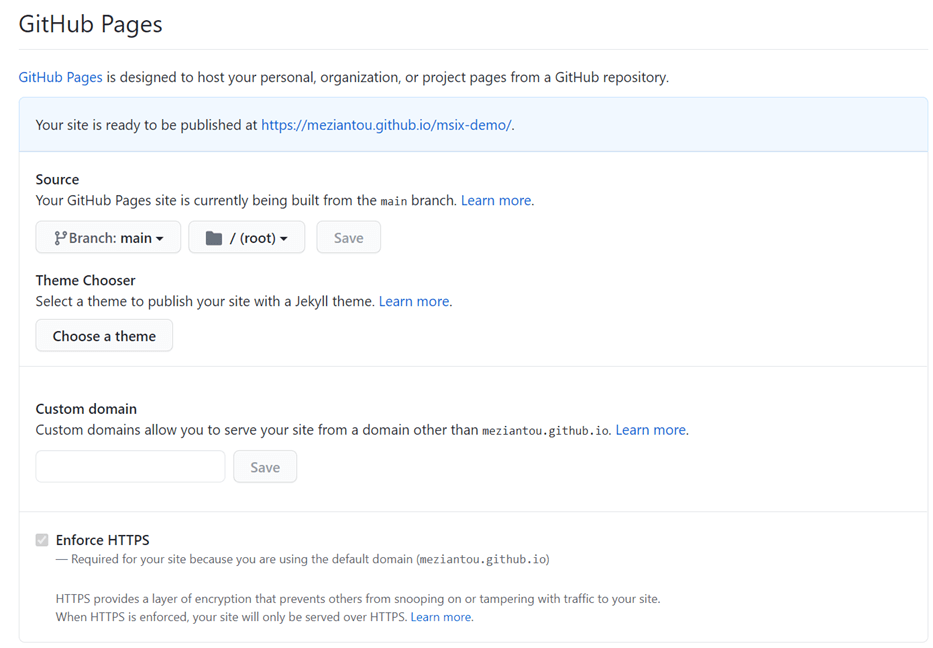

3. Enable GitHub pages in the settings

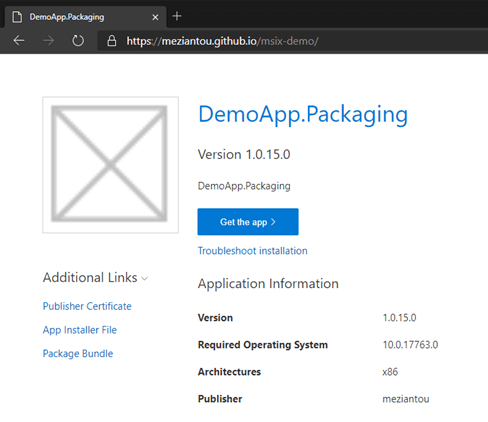

The site is now accessible. The main page displays the application information and has a button to get the application.

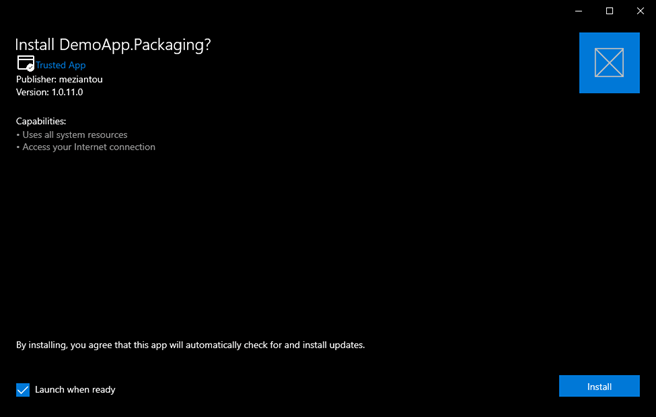

Clicking on the "Get the app" button should open the installer:

#Installing package generated with a self-signed certificate

If you have generated the package using a self-signed certificate, you won't be able to install the application. Before installing the application, you first need to trust the certificate.

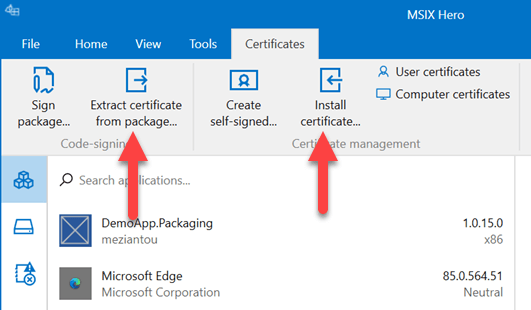

You can do it manually, or you can use MSIX HERO. This tool is very useful to diagnose packages and know which packages are installed.

The first option extract the certificate from the package and install it. The second option install it directly from the certificate file. You can get the certificate from the website in "Additional Links".

Once the certificate is installed, you can install the application.

#Check for updates from code

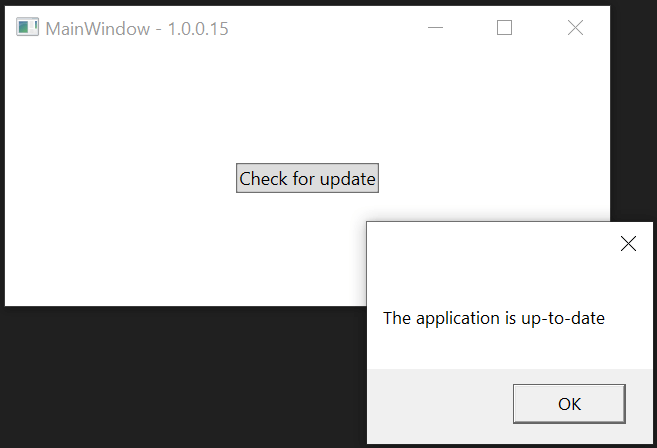

The application will check for updates automatically on application startup. If the application runs for a long time, you may want to check for updates from the code to indicate the user if a new version is available.

Windows provides an API to deal with packages. To use it, you need to target a specific version of Windows. If you are using .NET Core 3.1, you must add the NuGet package Microsoft.Windows.SDK.Contracts (documentation).

<!-- .NET Core 3.1 -->
<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>netcoreapp3.1</TargetFramework>
    <UseWPF>true</UseWPF>
    <RuntimeIdentifiers>win-x86;win-x64</RuntimeIdentifiers>
  </PropertyGroup>
  <ItemGroup>
    <PackageReference Include="Microsoft.Windows.SDK.Contracts" Version="10.0.17763.1000" />
  </ItemGroup>
</Project>

In .NET 5, you need to change the target framework to set the minimal version of Windows you want to support (documentation):

<!-- .NET 5 -->
<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>WinExe</OutputType>
    <TargetFramework>net5.0-windows10.0.17763.0</TargetFramework>
    <UseWPF>true</UseWPF>
    <RuntimeIdentifiers>win-x86;win-x64</RuntimeIdentifiers>
  </PropertyGroup>
</Project>

You can now use the Windows.ApplicationModel.Package api to get information about the package and check for updates:

var package = Windows.ApplicationModel.Package.Current;
var updateStatus = await package.CheckUpdateAvailabilityAsync();
switch (updateStatus.Availability)
{
    case Windows.ApplicationModel.PackageUpdateAvailability.Unknown:
        MessageBox.Show("Cannot check the status");
        break;
    case Windows.ApplicationModel.PackageUpdateAvailability.NoUpdates:
        MessageBox.Show("The application is up-to-date");
        break;
    case Windows.ApplicationModel.PackageUpdateAvailability.Available:
        MessageBox.Show("A new version is available! Restart the application to install it");
        break;
    case Windows.ApplicationModel.PackageUpdateAvailability.Required:
        MessageBox.Show("A new version is available! Restart the application to install it");
        break;
    case Windows.ApplicationModel.PackageUpdateAvailability.Error:
        MessageBox.Show("Cannot check the status: " + updateStatus.ExtendedError);
        break;
}

You can get the current version of the package using the Package.Current.Id property:

var package = Windows.ApplicationModel.Package.Current;
var version = package.Id.Version;

// Version doesn't override the ToString method, so you need to manually extract each component
var fullName = $"{package.Id.FullName} - {version.Major}.{version.Minor}.{version.Revision}.{version.Build}";

#Deployment using Continuous Integration

First, you need to have the expected component installed on the build machine. If you use chocolatey, you can install the following apps:

choco install dotnetcore-sdk --version 3.1.402 -y
choco install visualstudio2019-workload-universalbuildtools -y
choco install windows-sdk-10-version-1903-all -y

Then, you need to set the version of the application. The package version is store in the manifest file. This file is an XML file, so you can create a PowerShell script to update the XML file with the new version.

# update-version.ps1
param (
    [string]$version
)

# TODO Set the right file path
$FullPath = Resolve-Path $PSScriptRoot\Package.appxmanifest
Write-Host "Set version '$version' in file '$FullPath'"
[xml]$content = Get-Content $FullPath
$content.Package.Identity.SetAttribute("Version", $version)
$content.Save($FullPath)

You can then call this script:

# TODO use the version from your CI
update-version.ps1 -version $(Build.BuildNumber)

Finally, you can generate the package using msbuild:

msbuild "DemoApp.sln" /t:Restore
msbuild "DemoApp.Packaging\DemoApp.Packaging.wapproj" /p:Configuration=Release;Platform=x86

The command line generates the files in the AppPackages folder. You can then deploy these files the way you want to your server.

#Additional resources

• MSIX documentation
• Sideload LOB apps in Windows 10
• MSIX Succinctly
• MSIX Tutorial: A comprehensive 24-chapter guide
• Packaging a .NET Core 3.0 application with MSIX
• Call Windows Runtime APIs in desktop apps (.NET Core 3.1)
• Calling Windows APIs in .NET5
• What is the MSIX Bundle and how to create and manage it?
• MSIX Dynamic Dependencies - allow any process to use MSIX Framework packages

Do you have a question or a suggestion about this post? Contact me!
